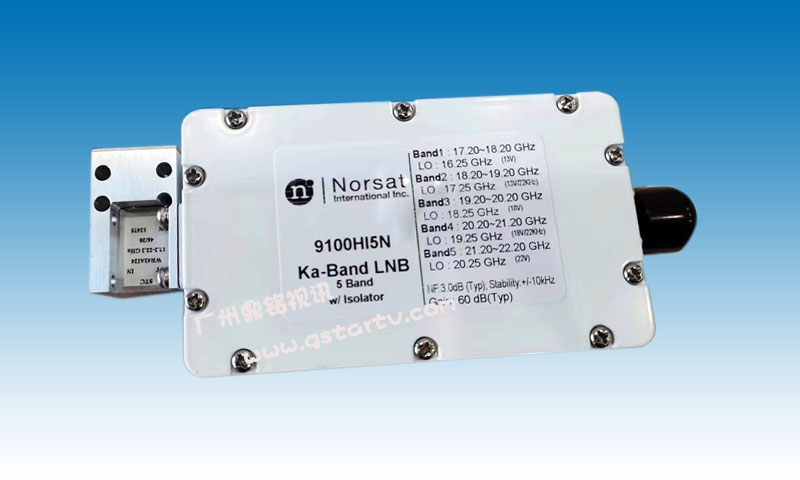

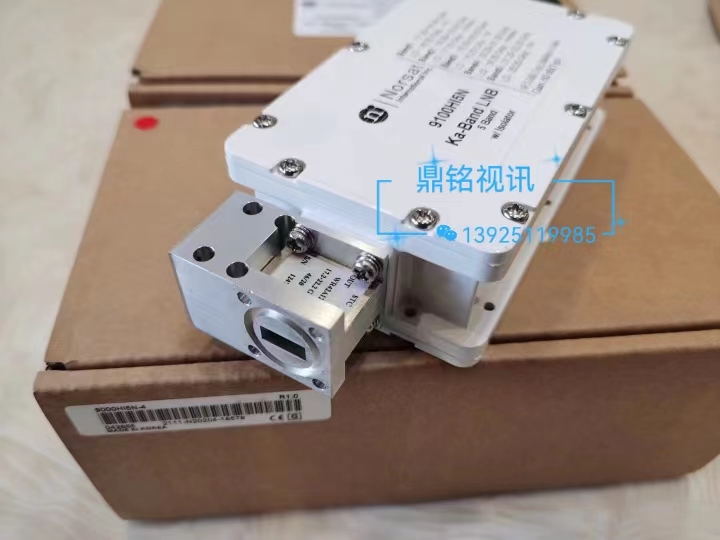

產品名稱：Ka全頻帶5本振高頻頭  5-Band Ka-Band Ext REF LNB
產品型號：9000X5N

產品特點：

•業界最好的低(本機振蕩器)穩定性

•超低噪音選項•定製選項包括非標準頻率、噪音數字和形狀因素

•普通 lnbs 的庫存和快速運輸

•世界級 norsat 售後支持

產品數據：

KEY SPECIFICATIONS
Band	Ka-Band
Input Frequency Band 1	Ka-Band: 17.20 - 18.20 GHz
Input Frequency Band 2	Ka-Band: 18.20 - 19.20 GHz
Input Frequency Band 3	Ka-Band: 19.20 - 20.20 GHz
Input Frequency Band 4	Ka-Band: 20.20 - 21.20 GHz
Input Frequency Band 5	Ka-Band: 21.20 - 22.20 GHz
Lo Stability	Phase Locked to External Reference
Lo Type	External
Noise Figure	2.5 dB typ
Output Frequency 1	L-Band: 950 - 1950 MHz
Output Frequency 2	L-Band: 950 - 1950 MHz
Output Frequency 3	L-Band: 950 - 1950 MHz
Output Frequency 4	L-Band: 950 - 1950 MHz
Output Frequency 5	L-Band: 950 - 1950 MHz
Product Family	9000X5 Series
RF SPECIFICATIONS
Control Signal 1	13 V
Control Signal 2	13V & 22 KHz tone
Control Signal 3	18 V
Control Signal 4	18V & 22 KHz tone
Control Signal 5	22 V
Conversion Gain	60 dB typ
Input VSWR	3.5 : 1
Lo Frequency 1	16.25 GHz
Lo Frequency 2	17.25 GHz
Lo Frequency 3	18.25 GHz
Lo Frequency 4	19.25 GHz
Lo Frequency 5	20.25 GHz
Output VSWR	2.2 : 1
INTERFACE SPECIFICATIONS
RF Input Connector	WR-42 waveguide grooved
RF Output Connector	N-50 Ohm
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational	-40 to +60°C
Temperature Storage	-40 to +80°C
Weight	550g
PHYSICAL SPECIFICATIONS
Dimensions (LxWxH)	137 x 67 x 39 mm

Norsat是高性能，高質量，和無與倫比的耐用性的代名詞。

Norsat 的 LNB 頻率範圍包括 c、 ku、 ka、 x 、 q 波段的單個和多個 LO(本機振蕩器)。
